Serendipity

Serendipity is a new prototype programming environment for desktops and the web. Currently, it is in the proof-of-concept stage. It is powered by a tiny core language that is:

• purely-functional.
• dynamically-typed.
• lazy-evaluated.

The design and overall philosophy of Serendipity is inspired by the many wonderful programming languages that I have had the pleasure to use, primarily Racket, JavaScript, Rust, and Clojure. My greatest aspiration for it is that students and experienced programmers alike might use it to discover powerful and fundamental ideas in Computer Science through exploring an interactive programming environment.

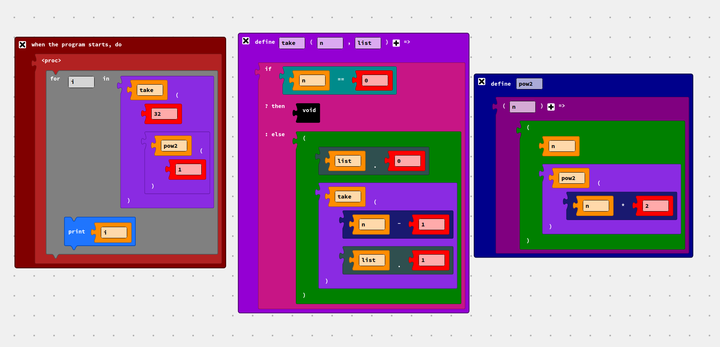

I designed Serendipity with the intent of developing several front-ends. If I succeed, then it should be easy to develop completely new front-ends for serendipity that use a variety of editing modalities. Currently, there are two front-ends: the basic blocks-based editor featured in the screenshot above and a Lisp-like front-end that I use for debugging. The blocks editor uses React.js and MobX state management. The UI is powered by ordinary SVG.

Currently, Serendipity is implemented entirely in TypeScript, though I intend to rewrite some or all of it in Rust (or hopefully in a Serendipity front-end) as needed.

Compared to Other Block Programming Engines

Serendipity’s block editor was borne out of frustrations with existing block programming toolkits, in particular Google’s Blockly. The fundamental problem with Blockly and its many forks is that it treats blocks as merely a representation of text. When a blockly program is compiled, it is transformed into text, and then the text is processed using conventional compilers/runtimes. While this has some advantages, it introduces a lot of complexity in the process of returning useful diagnostic information to the user in the block workspace. It also means that, in some cases, text programs cannot be represented by blocks (try writing a higher-order program in a Blockly-based language!).

Serendipity’s editor instead views blocks as a direct representation of the program’s abstract syntax tree. Serendipity’s editor is therefore a structure editor, and when a user manipulates the blocks, they manipulate the abstract syntax tree directly. This means that there is no parser in the web editor, as the principal data structure of the program is the syntax tree, rather than a text file as would be the case with conventional text-based or Blockly-based programming.

Compiler

Serendipity’s compiler, though simple, contains some unusual transformations that the compiler-interested may find intriguing. While the core runtime language is purely-functional, the front-end languages allow for procedural programming. For example, consider the following iterative program (using the Lisp front-end):

; A sequence of integers starting at n
(define (seq n) (cons n (seq (+ n 1))))

(main [proc
  (for-in [i (seq 0)] (do [proc
    (if (>= i 10) (break))
    (print i)
  ]))
])

In this front-end, proc is a fundamental constructor for a procedural block of code. While this construction appears similar to begin in Scheme (by design), its implementation is much different. When this program is compiled, Serendipity will apply a series of transformation that reduce procedural programs into functional programs using a continuation-passing style with an explicit “world” argument.

In the language of Serendipity’s runtime, the main program above is reduced to a pure functional computation (formatted and annotated for “readability”):

;; Main entry point, with some shim code for bootstrapping CPS
;; __k defines
((λ__k.λ__w.(
 ;; The fundamental looping constructor provides a continuation for breaking
 λ__brk.(
  ;; Iteration recursively binds a single iteration as a continuation until
  ;; the loop is broken, either by an explicit `(break)` or by the iterator
  ;; returning nil. (`seq` below is bound in the environment.)
  λ__loop.((__loop __w) (seq 0)) (
   ;; Fixed-point combinator allows for recursive binding of the loop
   ;; body
   λf.(λx.(x x) λx.(f (x x))) λ__loop.λ__w.λ__iter.(
    ;; Test for iterator termination
    (== __iter ∅)
    ;; If the iterator terminated (produced nil), we call the break
    ;; continuation
    ? (__brk __w)
    ;; Otherwise, run the iterator body, which starts with an (if) construction
    : (λi.(λ__w.((λ__k.λ__w.(λ__next.(
     ;; Do you recognize this? It's just the test for (>= i 10) that appeared
     ;; in the base program. Pure expressions are reproduced verbatim.
     (>= i 10)
     ;; The explicit call to break is rendered as an immediate call to the
     ;; breaking continuation
     ? (__brk __w)
     ;; Otherwise, evaluate the __next continuation (specifies the continuation
     ;; that handles the result of the entire (if) construction)
     : (__next __w))
     ;; The next continuation calls the `print` core builtin function.
     ;; Eventually this will be modeled as a monadic structure. For now it
     ;; simply returns the world as-is
     λ__w.(
       (λ__k.λ__w.((__core.print i) ((λ__k.λ__w.(__k __w) __k) __w)) __k)
       __w))
     ;; Evaluate __iter[1] (next value in the iterator) and loop over it
     ;; by finally cascading the world arguments and continuations
     λ__w.(λ__w.((__loop __w) __iter[1]) __w)) __w) __w) __iter[0])
   )))
   ;; This is bootstrapping code, though you can see that the "world" is
   ;; initialized to nil in the final argument (keep in mind that this is
   ;; reversed, so nil is actually the *first* argument evaluated and passed
   ;; into this CPS-call expression).
   λ__w.((λ__k.λ__w.(__k __w) __k) __w)) λ__w.__w) ∅)

The choice to use this extremely simple Church-ish language, though not very readable (that said, I don’t think it is that much worse than assembly language), enables all of the theoretical static analysis and optimization that is only useful in pure-functional programs (to summarize: it is very easy to statically analyze a pure-functional program). I believe that this pattern of continuation-passing combined with dead-code and tail-call elimination along with the essence of laziness (you’ll find that all of the function calls above are tail recursive except for the infinite, where we are assisted by laziness) provides a very promising substrate for building Serendipity far into the future.

What’s Next?

In addition to adding enough features to the editor to take Serendipity from a proof-of-concept stage to a usable Alpha stage (currently, you can’t save a program and have to use the debugging console to spawn new blocks), I am developing a non-Lisp-like textual representation of Serendipity programs that will have two front-ends: a text parser and a text-like structure editor (similar to the incredibly powerful editor of the Hazel project) as a counterpart to the blocks-based structure editor.

Eventually, I will rewrite most of the block rendering code to use either HTML canvas or a GPU subsystem (WebGL or WebGPU), as I am reaching the limits of what I can easily accomplish within React and SVG due to uncontrollable accumulations of SVG jank.

Beyond the editor, the next monster problem to solve is to define and implement a type system. I have become completely enamored with TypeScript’s approach to type-checking JavaScript: interface-driven optional typing. That said, TypeScript isn’t perfect, and there are mistakes that were made along its development into the beloved language that it is today, and I now have the benefit of being able to learn from those mistakes. I am attracted to the idea of truly optional typing, in which a user might provide a type (but doesn’t have to), and we can check it statically, with no runtime cost, if a type is provided.

However, implementing a type checker isn’t the reason it’s a monster problem. Writing some software for basic optional typing is simple enough. The monstrosity comes from trying to figure out how to represent optional type annotations in a blocks-based programming language. None of the block environments that I’m familiar with do this very satisfactorially (or at all), so if you are aware of any, send me an email or leave a comment below!
